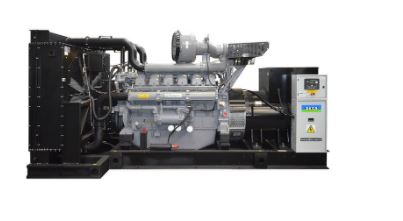

AP 1900-6

Product Control System Canopy

Product: PERKINS генератор: ECO 46-2S/4 A (380V) - 60Hz Control System: DSE 7320

INTRODUCTION

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

ISO 14001-2004

TS ISO 8528

TS ISO 9001-2008

SZUTEST

2000/14/EC

General Characteristics

Model Name		AP 1900-6
Frequency (Hz)		60
Fuel Type		Diesel
Engine Made and Model		PERKINS - 4012-46TAG3A - 60Hz
Alternator Made and Model		Mecc Alte - ECO 46-2S/4 A (380V) - 60Hz
Control Panel Model		DSE 7320
Canopy		AK 99-AP1875

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
VOLTAGE	kVA	kW	kVA	kW	Standby Amper
480/277	1900	1520.00	1740	1392.00	2285.41
380/220	1890	1512.00	1720	1376.00	2871.64

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

Block Heater QTY
Engine		PERKINS
Engine Model		4012-46TAG3A - 60Hz
NO. OF CYLINDERS AND BUILD		12 cylinders - V type
BORE AND STROKE	mm	160 X 190
TOTAL DISPLACEMENT	L	45.842
Aspiration		Turbo Charged
COMPRESSION RATIO		13.0:1
RATED SPEED (RPM)	d/dk	1800
OIL CAPACITY	L	177
Standby Power (kW/HP)		1643/2203
Prime Power		1500/2011
Block Heater QTY		2
Block Heater Power (Watt)
Block Heater Power (Watt)		3000
Fuel Type
Fuel Type		Diesel
Injection Type and System
Injection Type and System		Direct
Type of Fuel Pump
Type of Fuel Pump		Mechanical
Governor System
Governor System		Electronic
Operating Voltage (Vdc)
Operating Voltage (Vdc)		24 Vdc
Battery and Capacity (Qty/Ah)
Battery and Capacity (Qty/Ah)		4x143
Charge Alternator (A)
Charge Alternator (A)		40
Cooling Method
Cooling Method		Water Cooled
Cooling Fan Air Flow (m3/min)
Cooling Fan Air Flow (m3/min)		2160
Coolant Capacity (engine only / with radiator) (lt)
Coolant Capacity (engine only / with radiator) (lt)		225
Air Filter
Air Filter		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)
Fuel Cons. Prime With %100 Load (lt/hr)		356
Fuel Cons. Prime With %75 Load (lt/hr)
Fuel Cons. Prime With %75 Load (lt/hr)		277
Fuel Cons. Prime With %50 Load (lt/hr)
Fuel Cons. Prime With %50 Load (lt/hr)		185

ALTERNATOR SPECIFICATIONS

Manufacturer		Mecc Alte
Alternator Made and Model		ECO 46-2S/4 A (380V) - 60Hz
Frequency (Hz)	Hz	60
Power (kVA)	kVA	1480
DESIGN		Brushless
VOLTAGE	V	380
Phase		3
A.V.R.		DER1
Voltage Regulation	(+/-)	0.5
Insulation System		H
Protection		IP23
Rated Power Factor		0.8
WEIGHT COMP. GENERATOR (Kg)		3565
COOLING AIR (m³/min)	m³	162

SIZE and WEIGHT

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
		5816	2220	2787	2000
CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
AK 99-AP1875		900	2800	3456	2200

STANDART SPECIFICATIONS

Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE
• Remote Radiator Cooling
• Fuel-Water Seperator Filter
• Oil heater
ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Supplied with oil and coolant - 30 °C

Canopy: AK 99-AP1875
